| Product Features | |
| Warranty | 1 Year |
| Color | custom color |
| Wind loading | Within level 6 wind |
| Door type | Roller shutter |
| Project Solution Capability | total solution for projects |
| PVC thickness | 0.9mm/1.2mm |
| Model Number | High speed door |
| Design Style | Modern |
| Feature | Windproof, Wind and dust prevention |
| After-sale Service | Online technical support |
| Track material | galvanized steel or 304 stainless steel |
| Brand Name | hszn |
| Motor warranty | 1 Year |
| Door Material | Plastic |

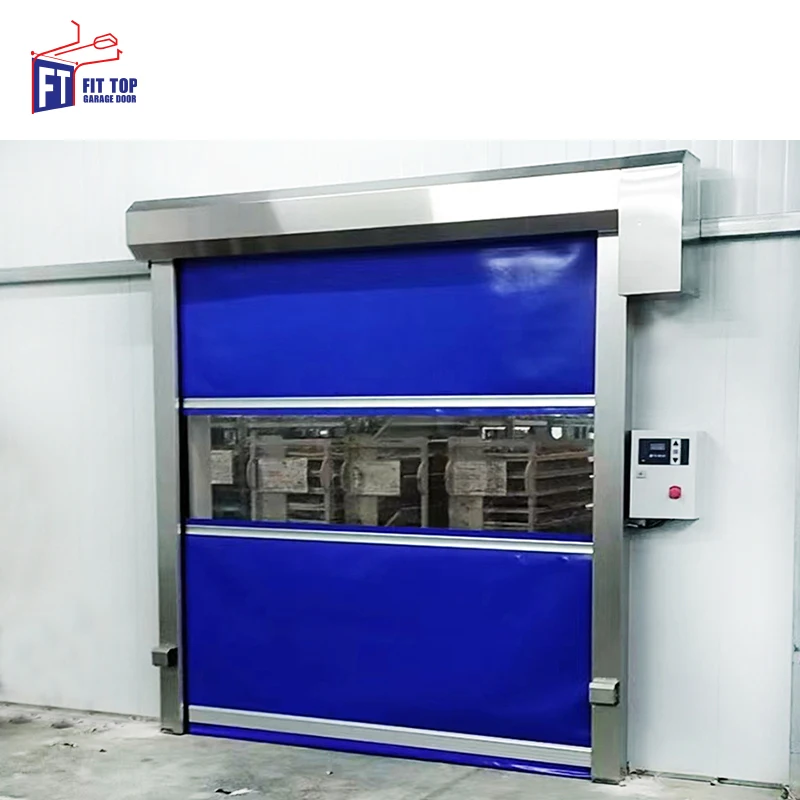

| Product name | Pvc high speed door |
| Running Speed | Opening 0.2~1.2m/s |
| Opening Method | Rolling Pull |
| Frame Material | PVC |
| Application | Warehouse |
| Main Material | PVC |
| Surface Finishing | Finished |
Type |
Servo high speed door |
Tubular motor high speed door |
|
Low configuration |
High confiquration |
||
Max. size |
DW4500*DH4500 |
DW4500*DH4500 |
DW6000*DH5000 |
Min. size |
DW1600*2250 |
DW1600*2250 |
DW1600*2250 |
Open speed |
Max.1.2m/s |
Max.1.2m/s |
1.8m/s(adjustable) |
Close speed |
0.6m/s |
0.6m/s |
0.6m/s(adjustable) |
Wind load resistance |
300N/m²(≤Force 7) |
300N/m²(≤Force 7) |
300N/m²(≤Force 7) |
Noise Level |
12dB |
12dB |
12dB |
Power |
0.75kw,1.5kw |
1.5kW |
0.75kw,1.5kw |
Operating temperature |
-35 ~ 55°C |
-35 ~ 55°C |
-35 ~ 55°C |
Opening Frequency |
60 times hour |
60 times hour |
60 times hour |

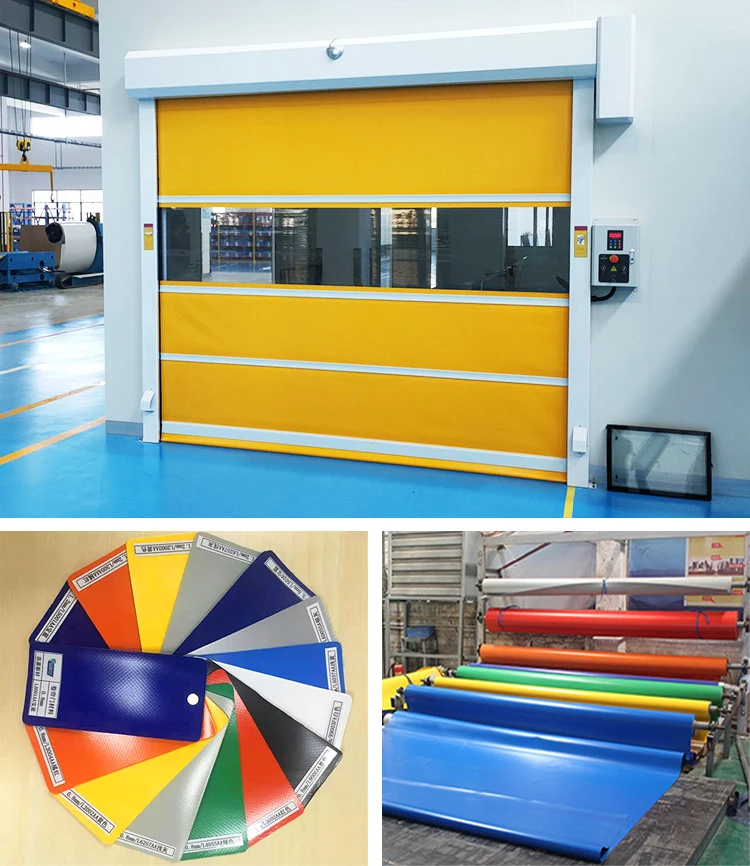

Curtain color |
Red ,Blue ,Yellow ,Orange ,Gery |
||
Application |
Automotive, Electronics, Logistics, Food, Electronics, pharmaceuticals, Traditional, Manufacturing and other Industries. |
||
MOQ |
1 Set |
||
OEM |
Accepted |
||
Packing |
Wooden Box |
||
Delivery Time |
12-22 Days |
||
